Venetian Carousel

GC 8,00/1P

Single Decker Horses Merry-go-Round after the 18th century fashion.

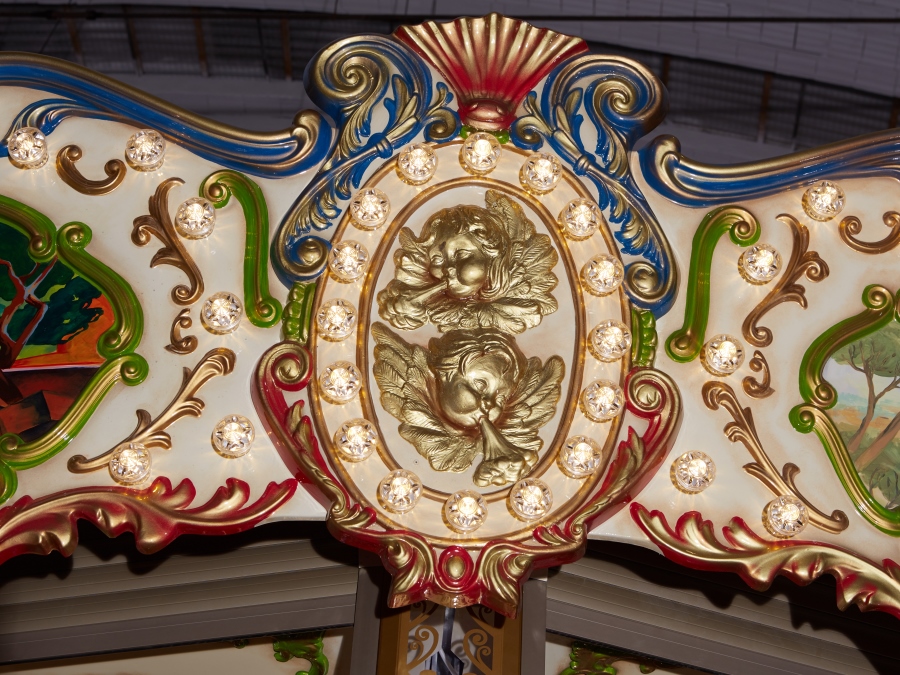

The carousel consists of an hot-dip galvanised rotating structure supported by a central column and covered by hand decorated fibreglass panels on which lighting is fixed.

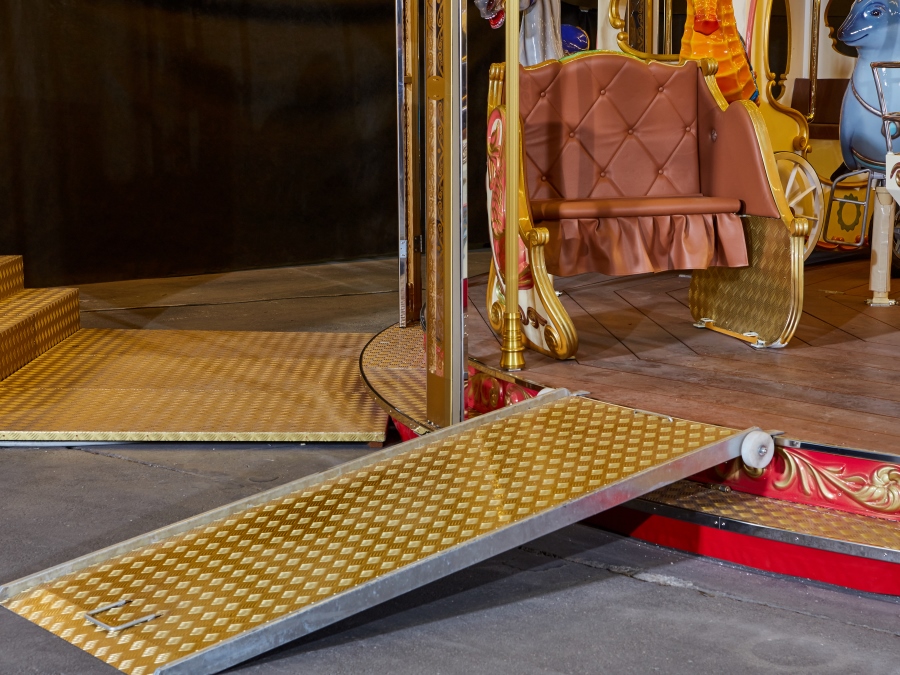

The floor structure is suspended from the ground by tie-bars hanged to the roof and the floor surface consist of clear coated solid hard-wood panels.
The driving unit consist of AC self-braking gear-motor mounted to the central column and electronically controlled. All Jumping horses and the rocking chariot are moved by ball bearing mounted crankshafts located on the ceiling.

Minimum dimensions:Diameter m. 8,5 (27’11”) - Height m 6,6 (21’8”)
Maximum capacity:35/37 passengers (Adults / Children)
Maximum passengers/hour:700 passengers/hour (3 min. cycle)
Power Requirements:Total maximum power 5 kW (2,5 kW Led Lighting - 2,5 kW Motive Power)
