Swing Carousel

GS 9,50/48

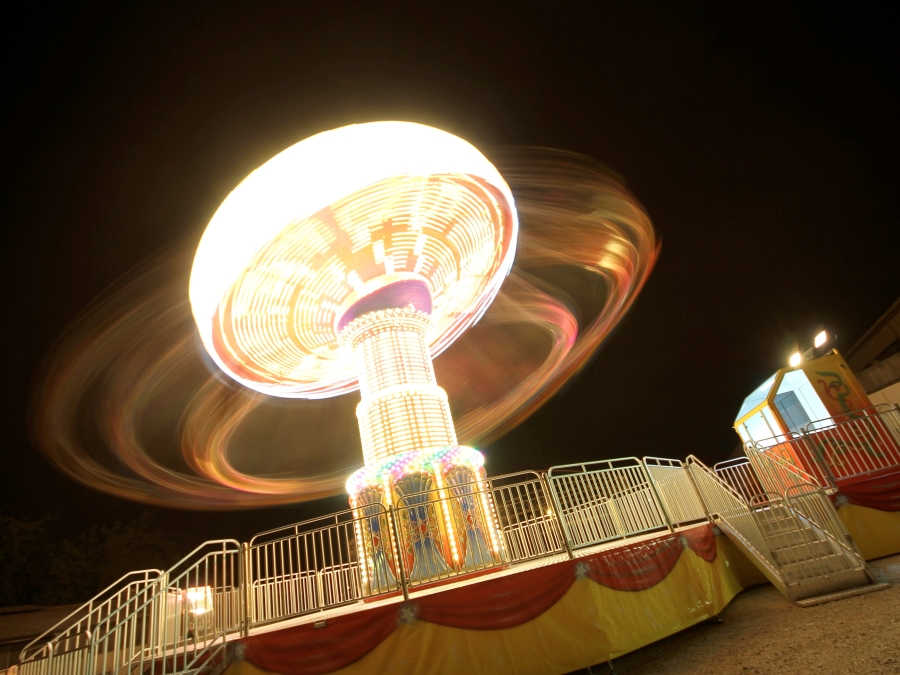

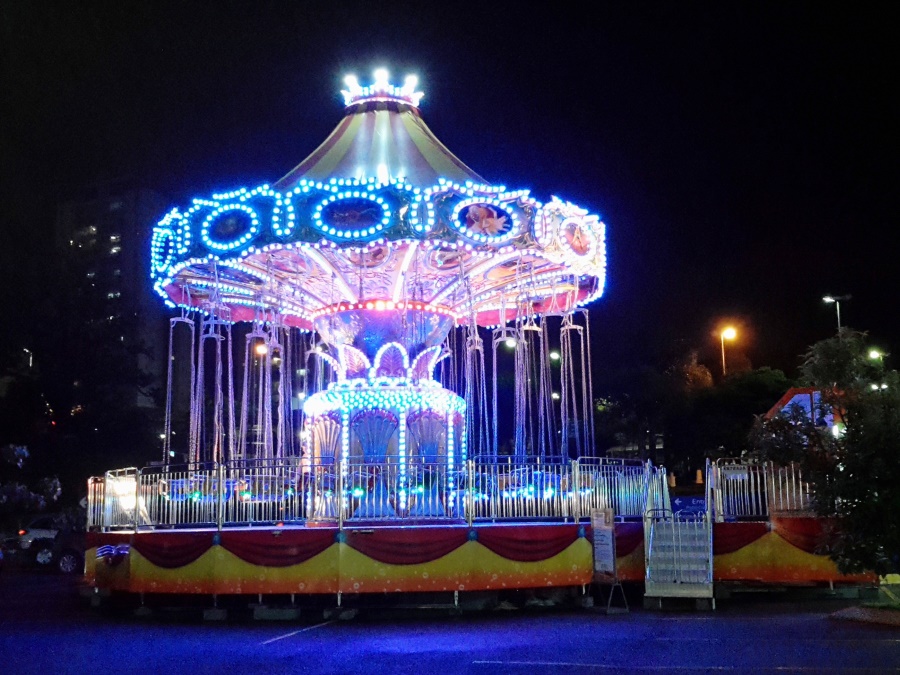

The Swing Carousel consists of a rotating structure rising along a central column and supporting three rows of swinging chairs; 12 double seat chairs are located on the inner row for accommodation of one adult and one child.
All decorative panels are made out of fibreglass with galvanized-steel frame. All decoration are hand made and all painting one by one hand-brush executed. Lighting is permanently mounted on fibreglass elements.
The swinging chairs and their supporting chains are made by stainless steel and fibreglass shells.
The covering roof is made up by a flame-retardant canvas with decorative fibreglass “flat”cover.
The rotation is made by one self-braking AC motors on top and one AC motor at bottom of central column.
All motors are controlled by frequency drives and the whole system is operated by PLC’s.

Static dimensions (park model):Diameter m.9,3 (30’6”) - Height m.8,3 (27’3”)
Operational dimensions (park model):Diameter m. 14,9 (49’) - Height m. 11,1 (36’5”)
Static dimensions (trailer mounted):Front 14,25 (46’9”) – Side m.10,3 (33’10”) - Height m.9,4 (30’10”)
Operational dimensions (trailer mounted):Front m.16,1 (53’) - Side m.14,9 (49’) - Height m.12,2 (40’)
Maximum capacity:36+12 passengers (Adults + Children)
Maximum passengers/hour:720 passengers/hour (4 min. cycle)
Power Requirements:35 kW (5 kW Led Lighting - 30 kW Motive Power)
