Venetian Carousel

GC 4,70/1P

Single Decker Horses Merry-go-Round after the 18th century fashion.

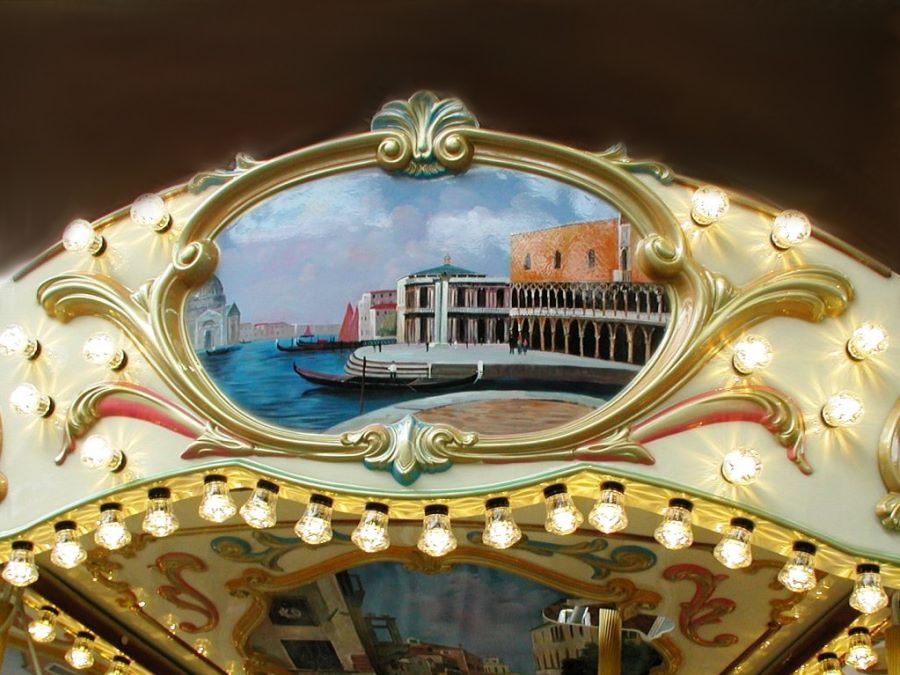

The carousel consists of an hot-dip galvanised rotating structure supported by a central column and covered by hand decorated fibreglass panels on which lighting is fixed.
The floor structure is suspended from the ground by tie-bars hanged to the roof and the floor surface consist of clear coated solid hard-wood panels.
The driving unit consist of AC self-braking gear-motor mounted to the central column and electronically controlled. All Jumping horses and the rocking chariot are moved by ball bearing mounted crankshafts located on the ceiling.

Minimum dimensions:Diameter m. 5,5 (18’) - Height m 3,35 (11’)
Maximum capacity:19/20 passengers (Adults / Children)
Maximum passengers/hour:480 passengers/hour (2,5 min. cycle)
Power Requirements:Total maximum power 7,5 kW (6 kW Lighting - 1,5 kW Motive Power)
