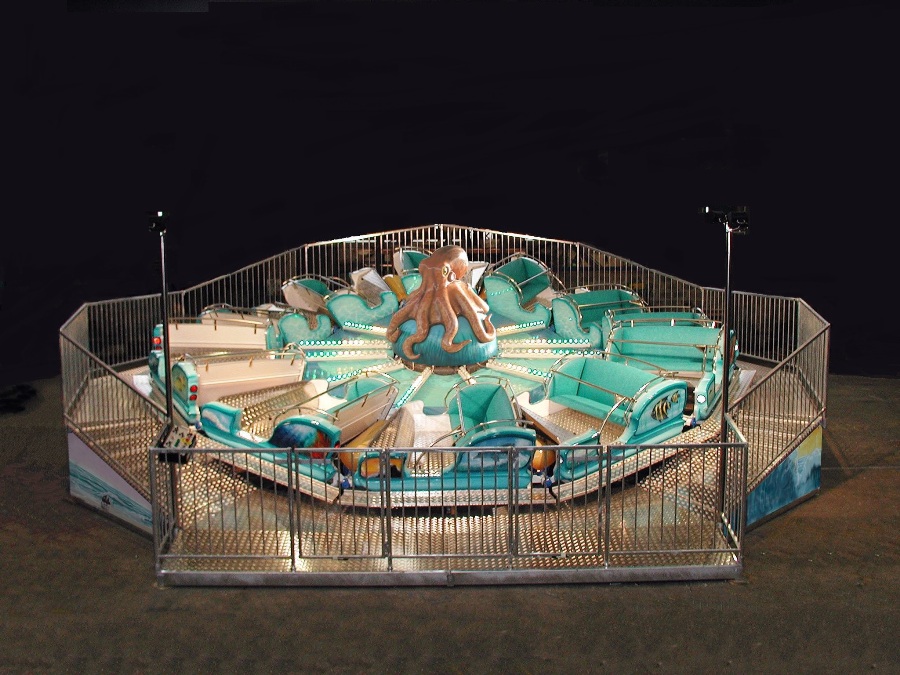

The Musik-Express ride consists of a circular development track with depressions and three cat backs. The rail is supported by a steel horse structure, connected to the central body by radial longeron and tie rods. The whole metal structure is hot-dip galvanised. Twelve cars run along the rail and are connected to a central rotor by radial sweeps. The foot-boards approaching the cars consists of an aluminium tread plate. All electric and pneumatic equipment is fitted inside the central body, on which the central rotor is fixed.

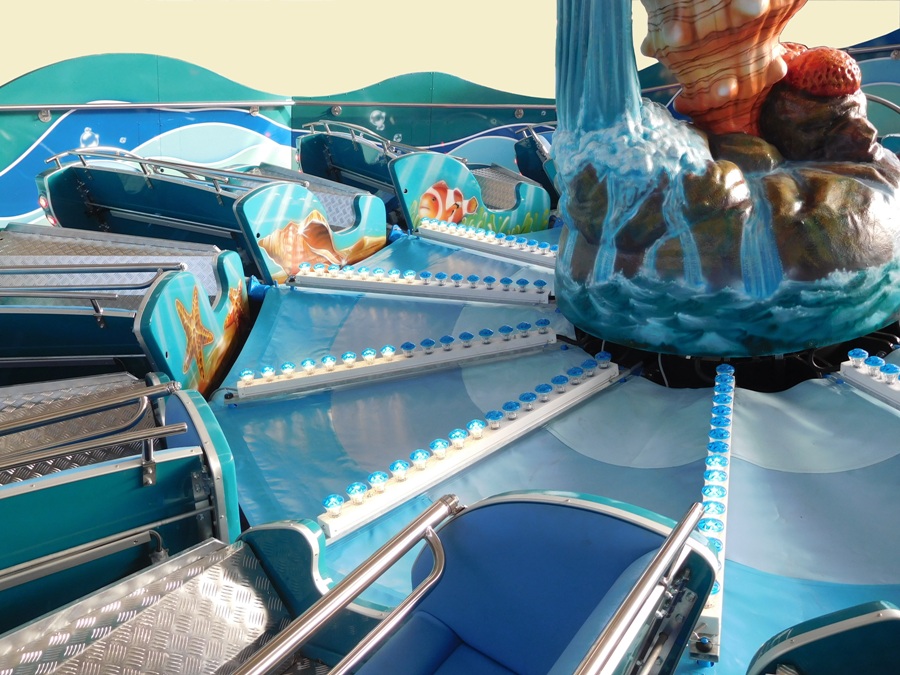

All decorative panels are coated with aluminium sheet. Electronically operated lighting is composed of cabochons. The covering canvas is made of fireproof material (class 2) and panelling of the cars are fibreglass made. The cars are moved by 3 self-braking AC motors fixed on the ends of the radial sweeps and controlled by Frequency Drive.
Maximum dimensions:Width m. 10 (32’10”) – Depth m. 10 (32’10”) - High m 3,5 (11’6”)
Maximum capacity:36 passengers (Adults/Children)
Maximum passengers/hour:720 passengers/hour (3 min. cycle)
Power Requirements:23 kW (3 kW Led Lighting - 20 kW Motive Power)
